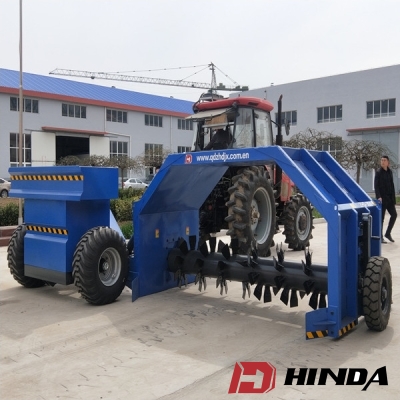

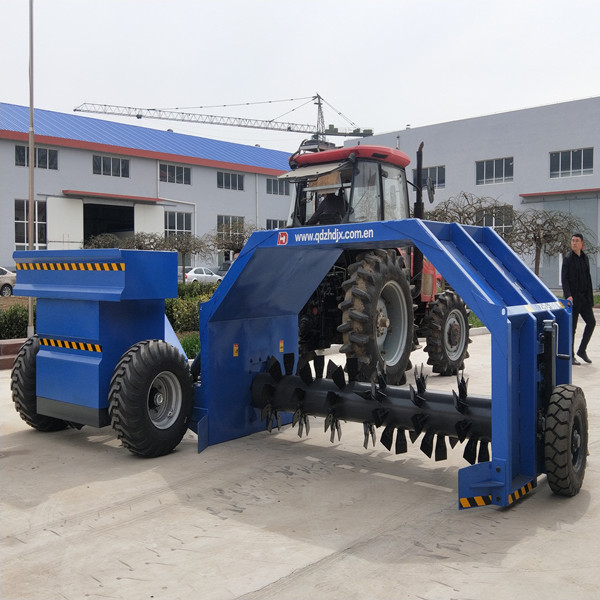

Towable Compost Turner ZHD-300B
This Towable Compost Turners is designed to tow behind a tractor, and adopt a hydraulic control system. It lifts and tumble compost materials, and aerates each windrow with more oxygen for faster composting. This Tow Behind Compost Turners is widely used in the organic fertilizer manufacturing industry to manage larger crop residues (e.g. corn stalks), animal manure (e.g. pig dung, horse manure), yard waste, newspaper, cardboard, etc.
Working width: 3000mm
Length: 3900mm
Width: 5560mm
Height: 1650mm
Weight of equipment:1780kg
Counterweight Iron weight:1300kg
Tractor power: 120HP
Traction frame part size: 3900mm*700mm*2000mm
Flip box part: 3800mm*1600mm*1800
Overview of Towable Compost Turner ZHD-300B

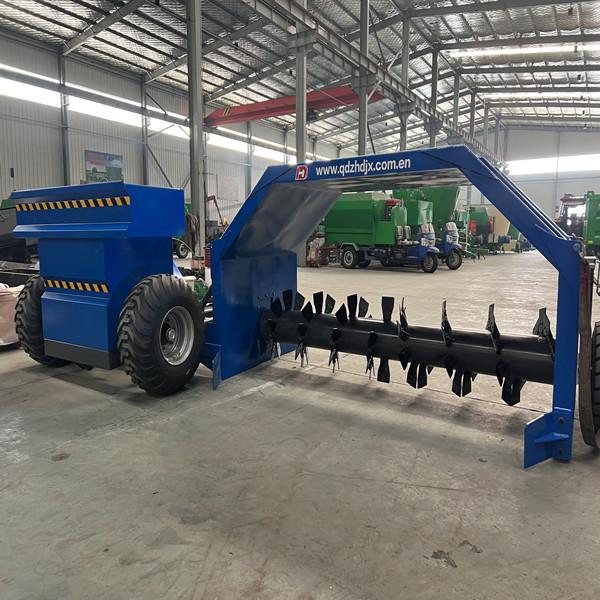

The heart of the patented HINDA-300B Series is the drum and paddle design that efficiently breaks up and mixes your compost ingredients while providing maximum aeration and product blending. It also lifts the windrow to a greater height which allows more Compost material to be added thus improving productivity.
Features of Towable Compost Turner ZHD-300B
1.Compost Turner is operated with a tractor via the creep-gear shaft.
2.Our PTO-driven compost turners are built to work through compost heaps efficiently and economically.1.6m rows and the is for 3.0m rows.
3.These machines are strongly built with simplicity, which makes it easy to use and to maintain. They have been designed to produce microbially-active high-quality compost.
4.A special hardened steel is used to manufacture the blades to ensure long lifespan and reduce running/maintenance costs. Each blade is uniquely shaped to bring the compost from the bottom to the top and from the outside to the inside.

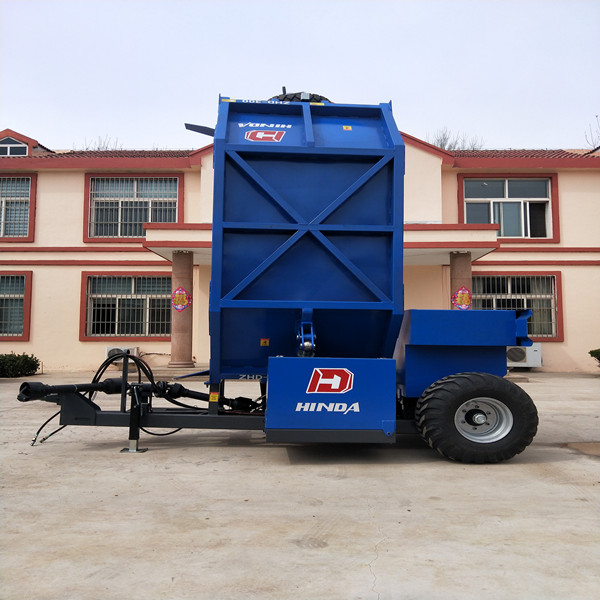

5.There’s a hydraulic jack located at the side of the compost turner. The jack is used lift the machine and tilt it up 90 degrees，Easy to use and save labor costs
Applications of Towable Compost Turner ZHD-300B
HINDA-200/300 Series Compost Turners provide even mixing and consistent saturation through the windrow, extremely low power consumption and fantastic fuel efficiency
HINDA-300 Windrow Turners is the machine you need to turn organic waste into profits.The HINDA-300 are Australian made and designed, tractor pulled compost turner /windrow turner with a built-in wetting and inoculation system for applying compost inoculants and starters. The HINDA series Turners the equal of any Compost/Windrow Turner currently sold in the world and Australian designed & manufactured. Available in 3 standard sizes: HINDA-200 HINDA-300A and HINDA-300B to ensure you have the right Windrow Turner for your Recycling/Composting Waste Management needs.
The strong well constructed HINDA Series Compost/Windrow Turner will be an enjoyable key to your successful Recycling/Composting Waste Management.
Product type | HINDA-200 | HINDA-300 | HINDA-300B | |
Tractor power | HP | 80 | 120 | 120 |
Working width | mm | 2000 | 3000 | 3000 |
Turner height | mm | 1200 | 1400 | 1400 |
Productive capacity | m³/h | 600-800 | 800-1000 | 800-1000 |
Overall dimensions | mm | 4100mm*2300mm*1200mm | 5560mm*3950mm*1650mm | 4250mm*1825mm*1590mm |
Weight | Kg | 820 | 2260 | 1395 |
Drum Diameter | mm | 540 | 720 | 720 |
