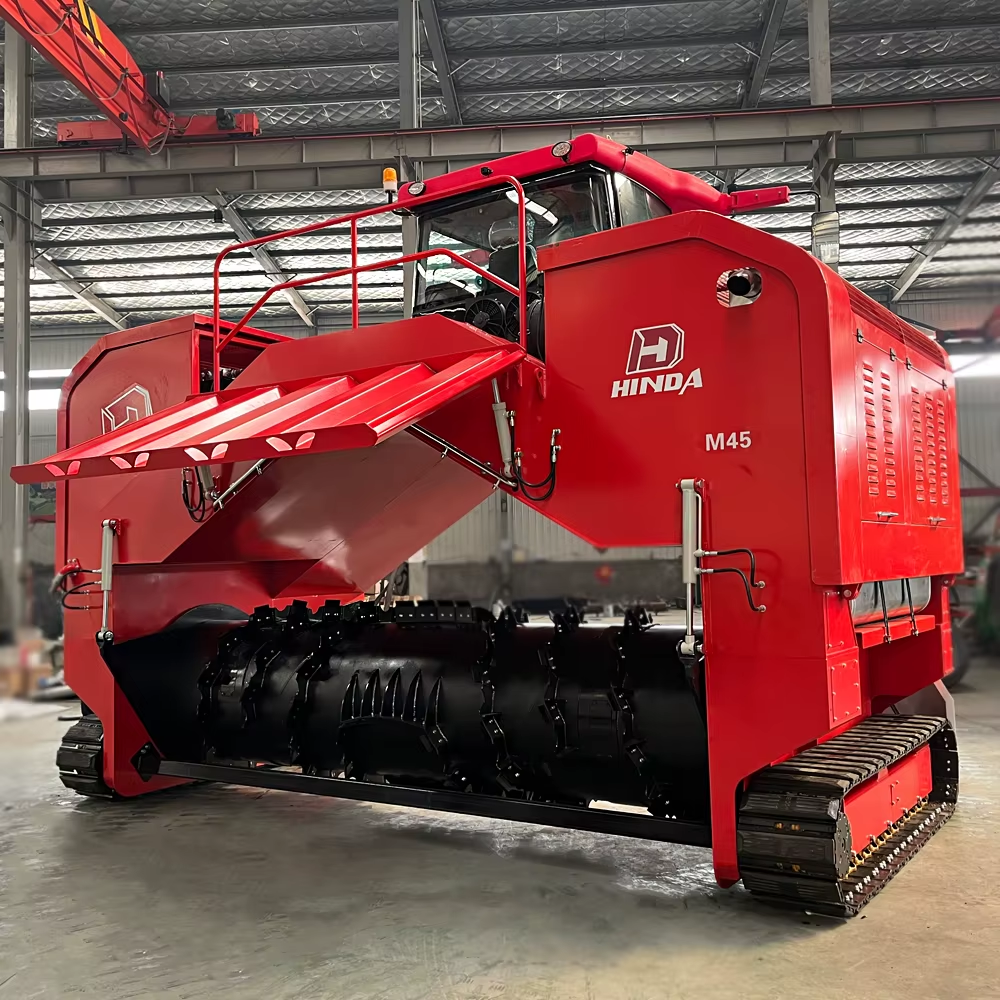

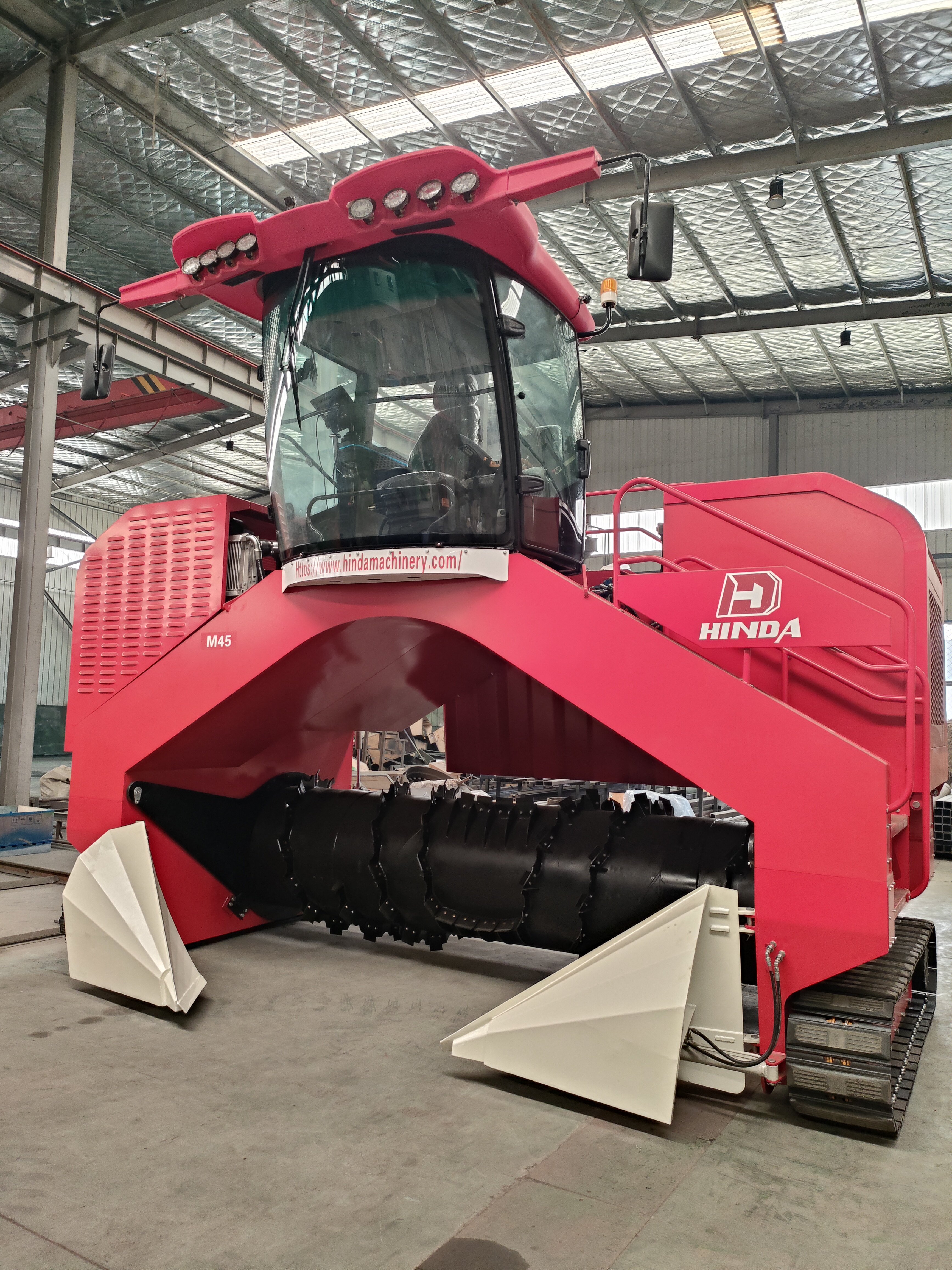

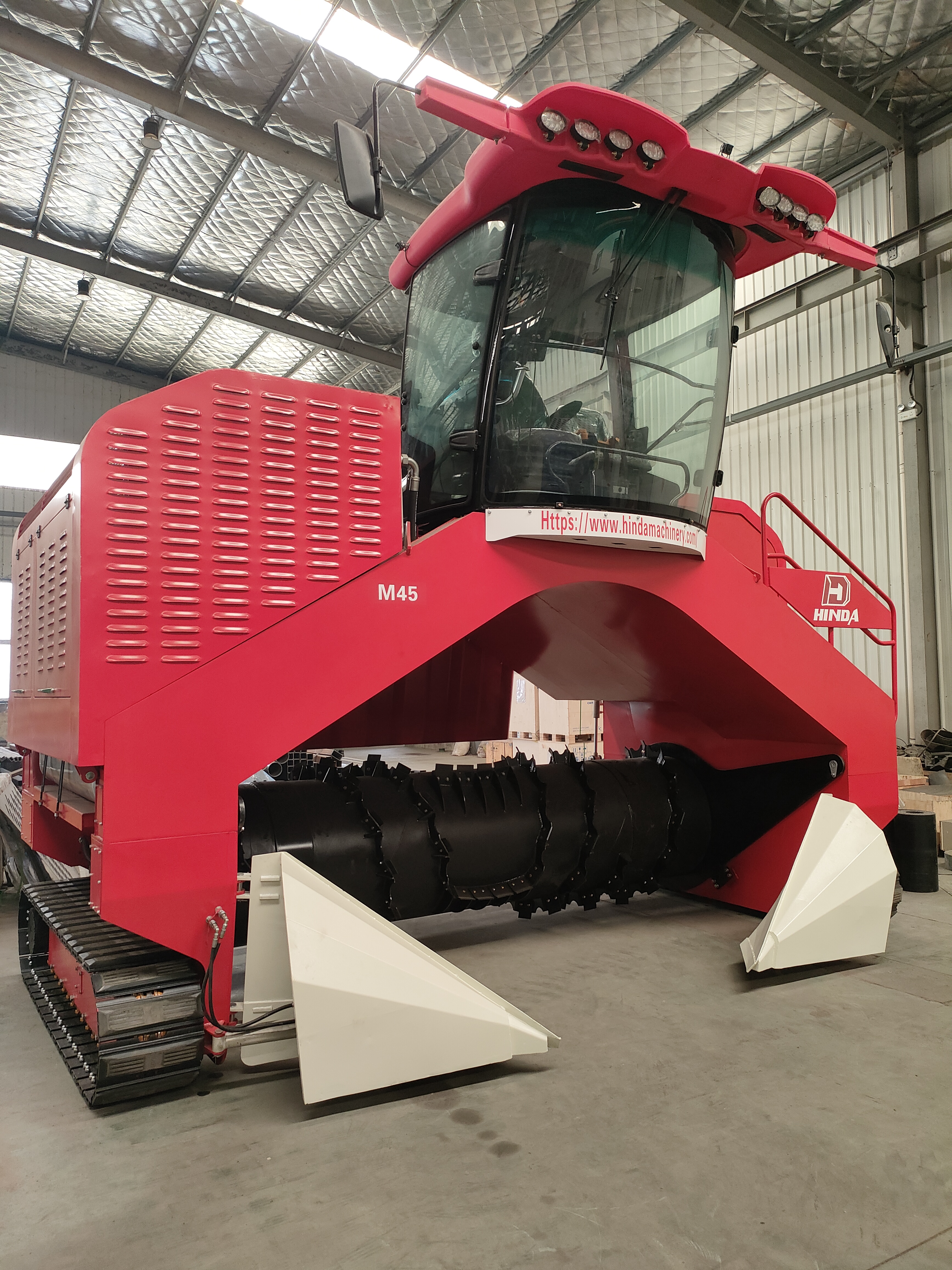

M45 Self-propelled Windrow compost turner
1. Overview
The Self-Propelled Compost Turner is an advanced organic waste processing machine designed for efficient composting in large-scale farms, organic fertilizer plants, and waste management facilities. With robust mobility and high-performance turning capabilities, it accelerates fermentation, improves aeration, and enhances compost quality.
2. Key Features
✅ Self-Propelled Design:
- Equipped with a diesel engine, enabling autonomous movement without external power.
- Crawler based chassis adapts to diverse terrains (e.g., uneven compost piles).
✅ High-Efficiency Turning:
- Rotating drum with adjustable blades thoroughly mixes and crushes materials (straw, manure, sludge).
- Promotes oxygen supply, speeding up decomposition (reducing fermentation cycles by 30–50%).
✅ User-Friendly Operation:
- Ergonomic control panel with adjustable speed and turning depth.
- Low labor requirement (1 operator can handle large-scale operations).
✅ Durable Construction:
- Corrosion-resistant steel frame and hardened blades for long-term use.
3. Technical Specifications (Customized per model)
- Working Width: 2~5 meters
- Processing Capacity: 500–3,000 m³/h
- Power Source: Diesel
- Turning Depth: 0.8–2 meters
- Travel Speed: 5–20 m/min
4. Applications
♻ Agriculture: Livestock manure treatment, organic fertilizer production.
♻ Municipal Waste: Composting organic waste (food scraps, garden waste).
♻ Industrial: Bio-waste recycling from agro-industries.
5. Advantages Over Traditional Methods
✔ Faster Composting: Uniform mixing cuts fermentation time from months to weeks.
✔ Cost-Effective: Reduces manual labor and fuel consumption.
✔ Eco-Friendly: Lowers GHG emissions by optimizing aerobic decomposition.
1. This compost turner is composed of a diesel engine driving system, hydraulic driving system, crawler walking system, front collecting rake device, turning drum device, and rear flip device.
There are two control methods: manual control and remote control. The advantage of remote control is that it allows operators to stay away from the odor and dust generated by waste in production, providing a comfortable working environment for operators.
2.
(1) The power source of this engine is a diesel engine. The engine adopts the best Yuchai four-cylinder 242 KW engine in China, which has strong and stable performance. All moving parts of the equipment are driven by hydraulic power, making this compost turner suitable for all working conditions and suitable for turning all kinds of materials.
(2) The strong drum with a diameter of 1200 mm adopts a bi-directional double belt design, which is suitable for the fermentation and tossing of various materials. It improves work efficiency, maximizes the elimination of dead corners during tossing, and achieves a 360-degree toss for sufficient air contact, allowing better fertilizer fermentation and shortening the fermentation cycle. The blades on the drum are made of wear-resistant plate with carburizing and heat treatment, and the service life can reach 3000 hours.
(3) Hydraulic crawler walking device: The walking system is designed with engineering-level strength and long service life. Compared with wheeled compost turners, the crawler has a larger contact area and anti-slip pattern, ensuring stable operation of the equipment. Turning and reversing are also very flexible.
(4) This compost turner produced by our company is compact and well-designed. The powerful engine allows it to have a width of 4.5 meters and a height of 2.5 m for material turning.
(5) Hengda Machinery Manufacturing, solving pollution hazards, and assisting the success of your composting project.
| Model | M45 | |
| Diesel engine | Dongfeng Cummins | |
| Power rating | kw | 242 |
| Diesel tank capacity | L | 300 |
| Cyclinders | 6 | |
| Windrow Width max | m | 4.5 |
| Windrow Height max | m | 2.3 |
| Rotor diameter | mm | 1200 |
| Running speed | m/min | 0-20m |
| Turning power max | m3/h | 3000 |
