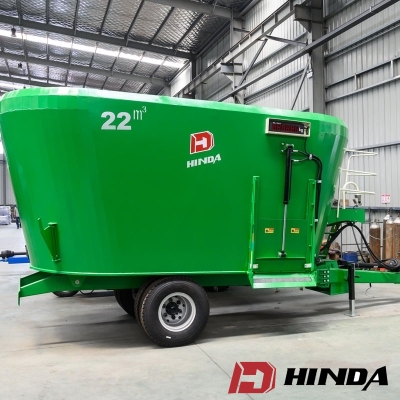

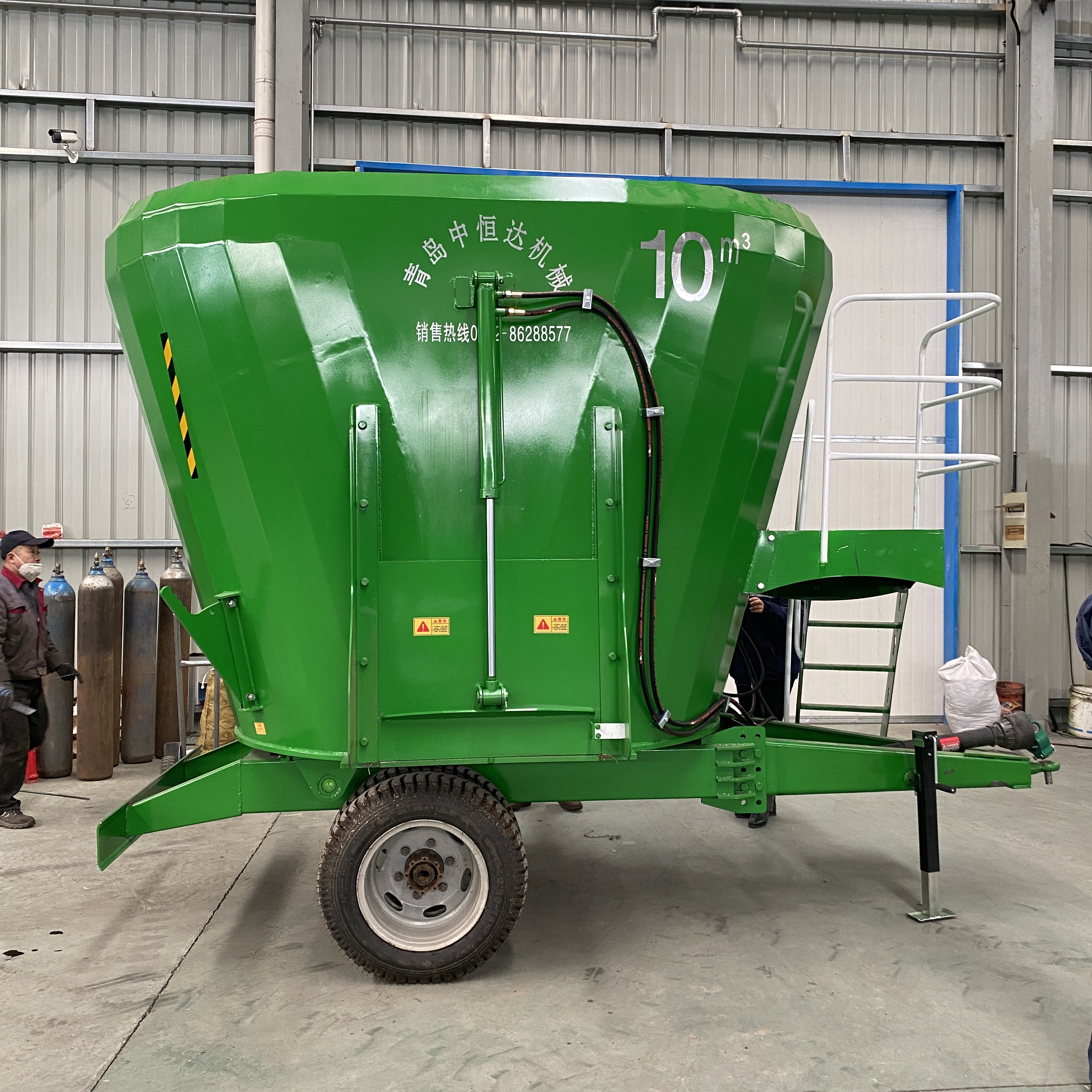

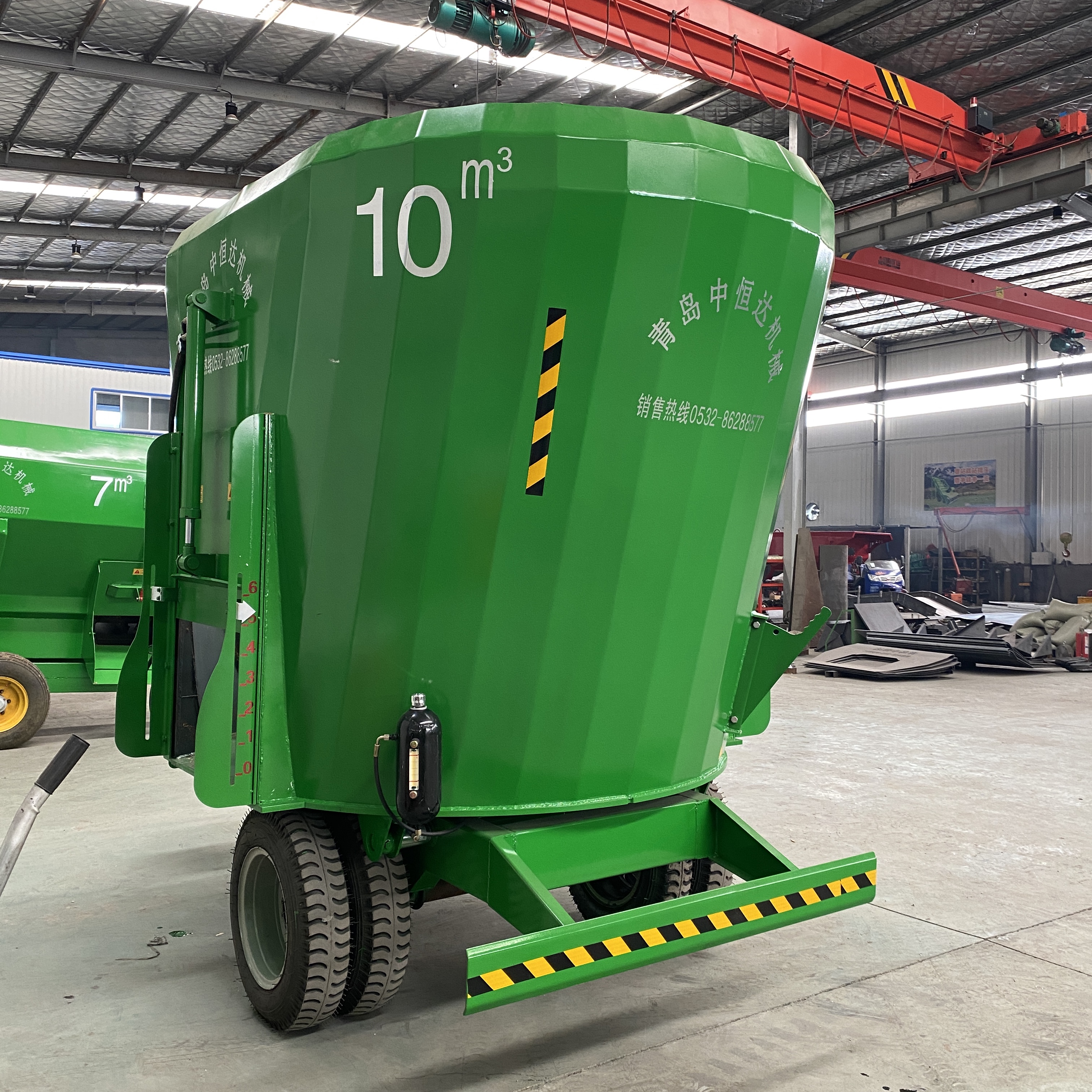

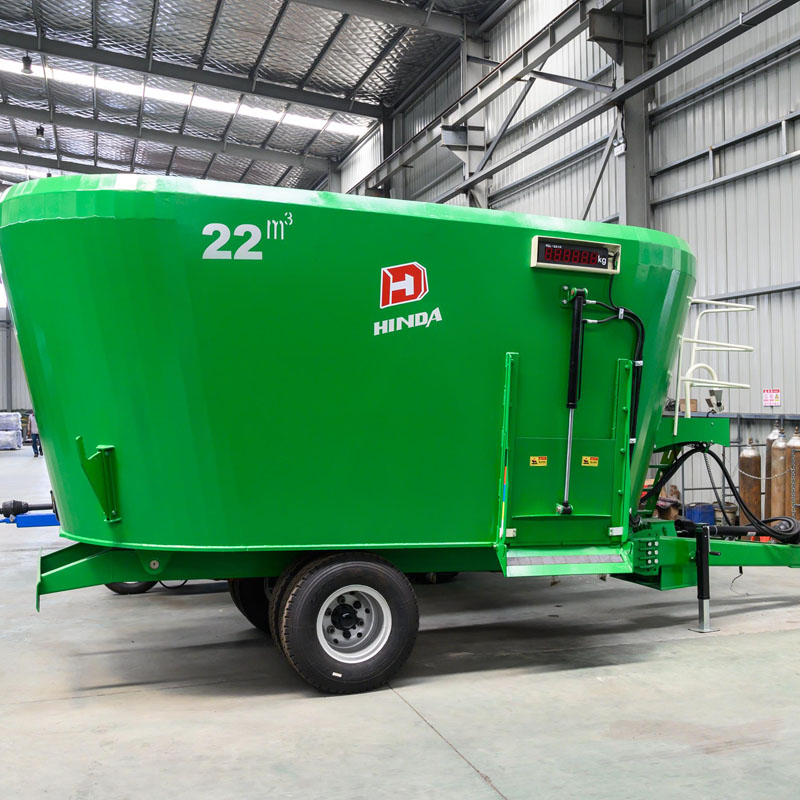

Dairy farm tractor-drawn vertical TMR feed mixer
A tractor-drawn vertical TMR (Total Mixed Ration) feed mixer is a type of machine that is used to mix various types of feed and ingredients for livestock using a vertical mixing auger. This type of mixer is often mounted on a tractor and is equipped with a hydraulic system that powers the mixing auger. The vertical design allows for a more thorough mixing of the feed, resulting in a more consistent and nutritious ration for the animals. The tractor-drawn vertical TMR feed mixer is commonly used on dairy farms and other livestock operations to produce high-quality feed for their animals.
Using tractor to provide power, feeding more convenient, faster.Single or dual speed drives are available, tractive TMR feed mixers up to 9 cubic meters are single speed drives, and over 12 cubic meters are dual speed drives.Excellent mixing and cutting system,The tapered auger provides superior feed motion for faster and more complete mixing and processing, with smooth, continuous propellers producing rolling feed action to improve mixing,Weighing system: the load cell has high sensitivity and accurate feeding.
Width：2400mm
Height：3900mm
Engine Power：>=66kw
Weight:2850kg
Application scenarios: Cattle farm, sheep farm
Tractor-drawn vertical TMR feed mixer features
1. The body material is made of wear-resistant manganese steel, which is corrosion resistant and improves service life.
2. Excellent mixing and cutting system, the conical spiral auger provides excellent material movement, and the tungsten carbide alloy blade can quickly cut large long and square bales.
3. The core part of the mixer: the reducer, using the JCTT reducer brand, the planetary drive system provides simplicity for long life and heavy-duty use, almost no maintenance, except for the regular replacement of gear lubricants.
4. The equipment is equipped with a weighing device to realize precise feeding on the farm.
5. It can be customized according to the scale of the farm.
Overview of tractor-drawn vertical TMR feed mixer
Using tractor to provide power, feeding more convenient, faster.Single or dual speed drives are available, tractive TMR feed mixers up to 9 cubic meters are single speed drives, and over 12 cubic meters are dual speed drives.Excellent mixing and cutting system,The tapered auger provides superior feed motion for faster and more complete mixing and processing, with smooth, continuous propellers producing rolling feed action to improve mixing,Weighing system: the load cell has high sensitivity and accurate feeding.
Tractor-drawn vertical TMR feed mixer application
Mixing and stirring device vertical auger, rotary cutting by mechanical transmission, can achieve a variety of feed, including: roughage, green feed, silage, energy feed, protein feed, mineral feed and other uniform mixing, to ensure the balanced nutrition of dairy cattle diet. Mixing uniformity ≥98%.
Technical parameters of tractor-drawn vertical TMR feed mixer
Type | 9JQL-7 | 9JQL-9 | 9JQL-12 | 9JQL-18 | 9JQL-22 | |
Auger number | 1 | 1 | 1 | 2 | 2 | |
Blade material | Carbon tungsten alloy | Carbon tungsten alloy | Carbon tungsten alloy | Carbon tungsten alloy | Carbon tungsten alloy | |
Blade number | 5 big blades | 7 big blades | 9 big blades | 14 big blades | 14big blades | |
Auger rotate speed | ≧26 round/min | ≧26 round/min | ≧26 round/min | ≧26 round/min | ≧26 round/min | |
Weigh sensor | 3 pieces | 3 pieces | 3 pieces | 4 pieces | 4pieces | |
Weigh display control pattern | Automatic | Automatic | Automatic | Automatic | Automatic | |
PTO Minimum Power Requirement | 60HP | 90HP | 90HP | 120HP | 140HP | |
PTO Drive | 540RPM | 540RPM | 540RPM | 540RPM | 540RPM | |
Machine dimension | machine dimension ： 3700*2200*2800mm | machine dimension ： 3900*2400*2800mm | machine dimension ： 4000mm*2500*2800mm | machine dimension ： 6200*2500*2800mm | machine dimension ： 6600*2500*2800mm | |
Weight | 2250kg | 2850kg | 3670kg | 4720kg | 6000kg |
